Perimeter and Intrusion Detection
Microwave Intrusion Detection
Predix 100 is a professional addressable dual-position microwave detector. Operates at K-Band (24.0 to 24.25 GHz) frequency, which results a very narrow detection zone. 250 different frequency channels can be set (programmed by software in 1MHz steps) to avoid unwanted interference caused by microwave reflection. 256 addresses are available to differentiate more unit in a single RS-485 communication bus. Automatic signal adaptation for environmental conditions (snow, rain, etc.). Operating distance is 10-100 meters, and the maximum width of the detection zone is around 1,2 meters. The settings can be made by the free PC software, the android app on tablet or the Perimote supervisory system.

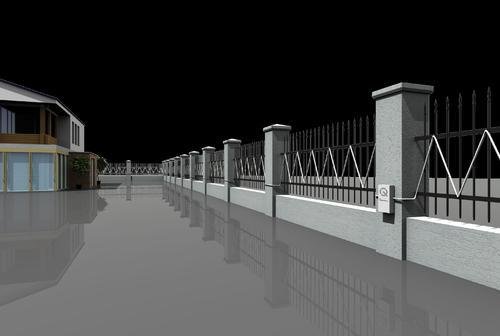

Electronic Fence Protection System
Quadrosense is a professional addressable fence protection system. The unit is using vibration-sensitive cable to detect the movement, bending, sawing, cutting of the fence. The starting pont of the sensitive cable can be extanded by the non-sensitive DC cable at maximum 500 meters. The control panel has 4 input and 4 output channels. Every channel can handle 250m vibration-sensitive (TB) cable, which means 1 unit can protect maximum 1km fence section(depends on the type of fence). 256 addresses are available to differentiate more unit in a single RS-485 communication bus. The settings can be made by the free PC software or the Perinet supervisory system.
Fiber Optic Based Perimeter Intrusion Detection System
- Two fully independent zones, each of which can support up to 500 meters of sensing fiber.
- Durable fiber-optic sensing unaffected by chemical or electrical environmental elements that include corrosion, EMI and lightning strikes.
- TCP/IP interface utilizing XML, in addition to a RS232 communications port, ensures a high level of integration and communication options.
- The FD322 can be fully integrated with our headend system for a total system solution when combined with other security elements such as video cameras and other third-party devices.
- Includes custom tuning software.
| Parameter | Specification |
|---|---|
| Application | Perimeter fence |
| Sensor | Passive, optical fiber; resistant to EMI and corrosion |
| Installation | Sensing fiber in conduit; conduit attached to fence with stainless steel wire ties |
| Number of zones per APU | 2 |
| Maximum sensing cable per zone | 500 meters |
| APU electrical power | · Input voltage: 12-24 volts |
| . Power: 3 Watts | |
| Light source | Laser |
| Communications | RS-232 serial communications, IP/XML |
| Optical connectors | ST, PC polish |
| Non-sensing lead-in fiber | No |
| Loss calibration | Automatic |
| Tuning parameters | · Sensitivity (for cuts and climbing) |
| · Number of events before alarming (for cuts and climbing) | |
| · Low-frequency cutoff (for cuts/climbing) | |
| . Wind rejection | |
| . Tamper (enable/disable) | |
| . Alarm relay time |
